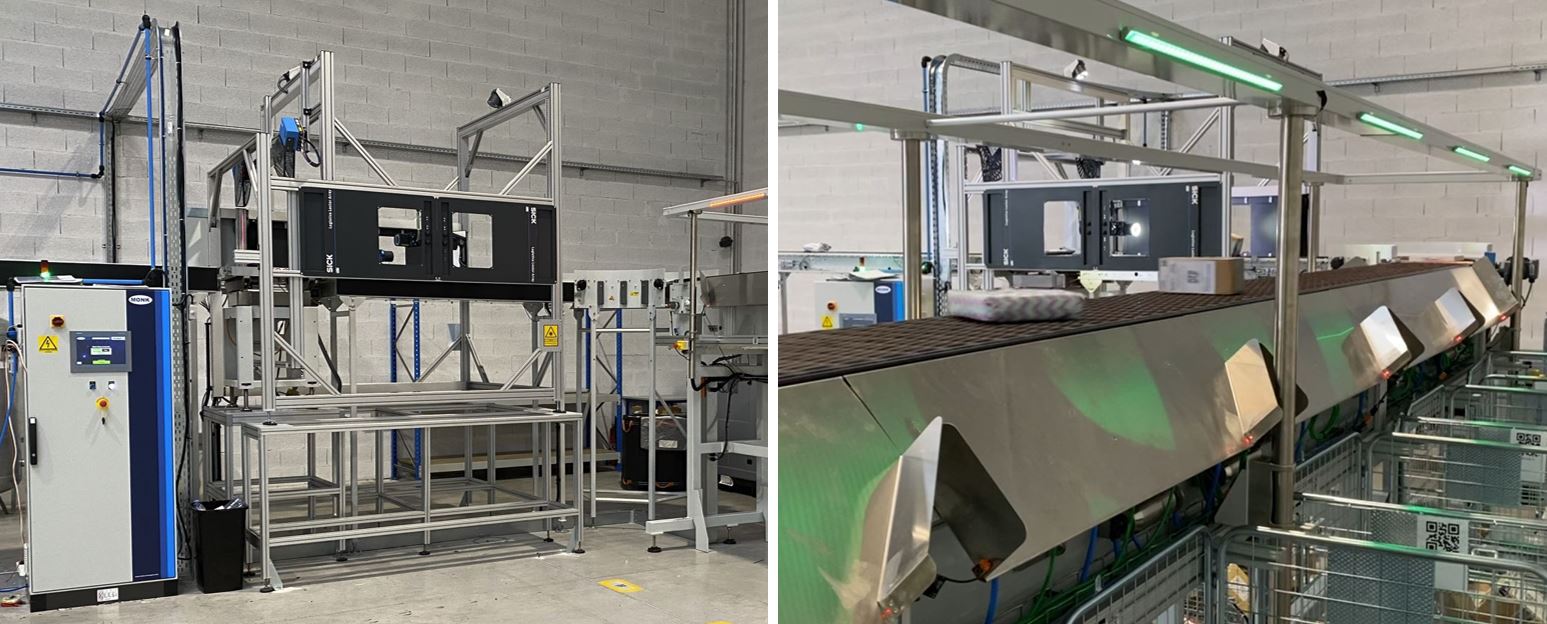

Measure, Weigh and Identify Objects

MONK’s installation partnership with SICK means we can provide class leading weighing, measuring and product identification conveyors at speeds of up to 6,000 items per hour.

Our in house software capability means we can offer a complete solution including installation, setup and full communications with your warehouse IT system. When each parcel is scanned we will provide:

Item Measurements (Height, Width and Length)
Item Weight
Barcode or QR code (1D or 2D) reading information

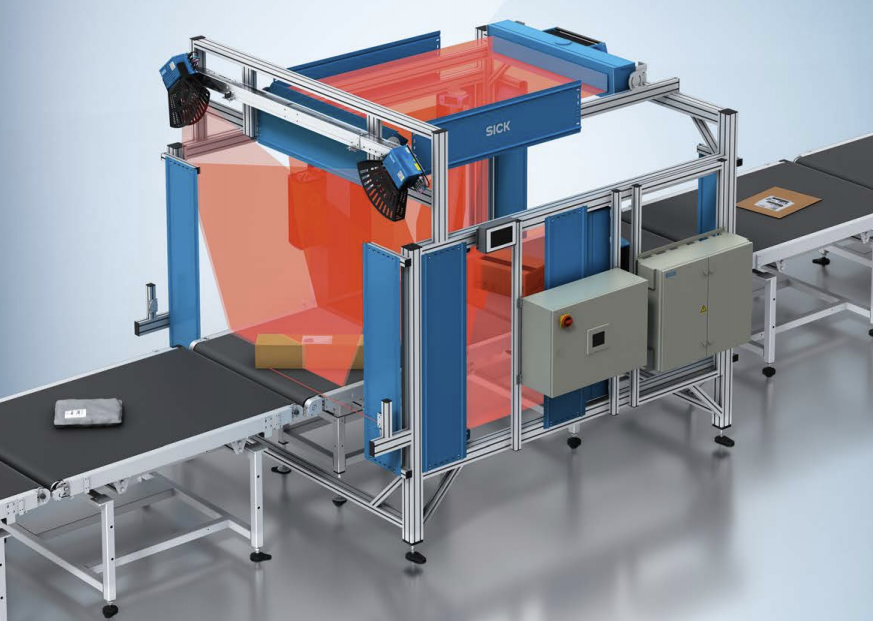

MONK install and setup the SICK DWS Dynamic system, which is the right choice for nearly any master data collection requirement to automate sorting, storage and conveying. The efficient system will improve your data collection along with increasing turnover per parcel. Data can also be used to route parcels to specific areas or bins.

SICK is a leading manufacturer of intelligent sensors and sensor solutions for industrial applications.

MONK’s high-performance DWS systems from SICK will save time and money. DWS can be integrated into our conveyor system or used as a stand-alone solution. SICK’s modular expansion stages and common system controllers, ensure future-proofing and high system availability. Benefits include:

Exact revenue recovery of shipment dimensions and weight

Legal-for-trade recording of volume and weight data with integrated code reading for automatic billing

Short investment payback time thanks to high overall read rate

A wide range of objects can be identified, measured and weighed at high speeds in just one step

Flexible usage and adaptability

Use as a stand-alone solution or integrated into new or existing conveyor technology
Functional enhancements for object verification thanks to 2D / 3D vision software

Specification Summary:

Identification of all common code types

Technologies: Laser, camera, RFID

Scan mode: manual or automatic

Performance

Speed: up to 3.4 m/s

Throughput: up to 19,000 pph possible

Measurement of a wide range of parcel sizes and shapes

Object data: L /W/H

Accuracy: ±5 mm/±5 mm/±2 mm

Technologies: Laser, camera

Object type: cubic and irregular

Weighting of objects

Object weight: from 0.01 to 150 kg

Scale types: Single, double or triple scales

Accuracy: ≥2 g

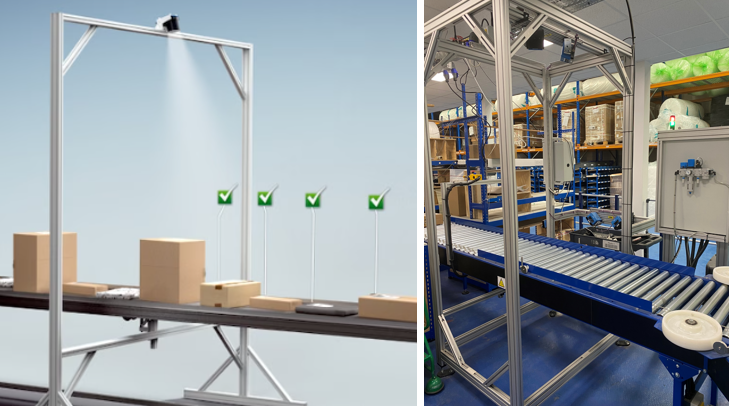

Single Face Scan and Identify

MONK also provide systems which can read a barcodes or QR codes on a single parcel face. This is ideal when parcels can be correctly orientated by staff as they are placed on the system. Parcels can then be routed to the next part of the process.
